Description

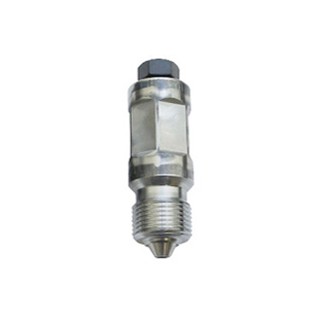

High Pressure Lubrication and Sealant Wellhead Grease Fittings Packing Injection 9/16" Autoclave Style

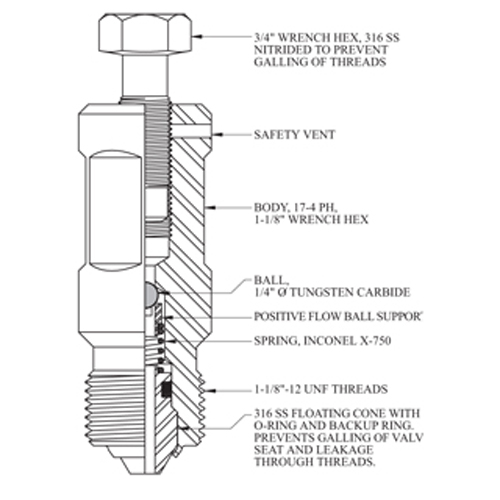

HI-TEK High Pressure Lubrication and Sealant Wellhead Grease Fittings Packing Injection 9/16" Autoclave Style feature a variety of styles. The Blowdown, Lubricant (Sealant),and Packing Injection Fiting styles come with a 9/16" Autoclave style thread for service to 20,000 psi and feature a unique 316 SS floating cone with an 0-Ring and backup ring which prevent galling of the valve seat and prevent leakage through the threads.
This ftting also features the Positive Flow Ball support design which directs the flow of the lubricant and/or sealant through the center of the spring without passing through the spring coil, reducing the tendency to' 'pack-off." The Positive Flow Ball Support is available in many other ftting styles.
Markets:
●Chemical
●Petrochemical
●oil and Gas
Applications:

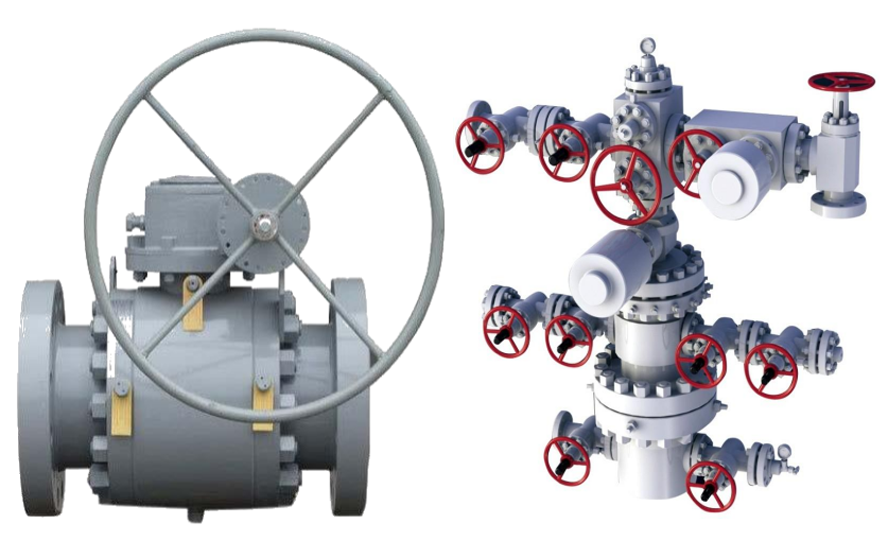

●Wellhead Blowdown Fitting
●Packing Injection systems
●Lubrication points in system
Specification Sheet
|
Part No. |
Material |
Thread Size |
Plating |
Ball |
Spring |
|
PBA-9/16-SS
|
SS |
1-1/8"-12 UNF |
... |
Tungsten Carbide/ K-Monel |
Inconel X-750 |

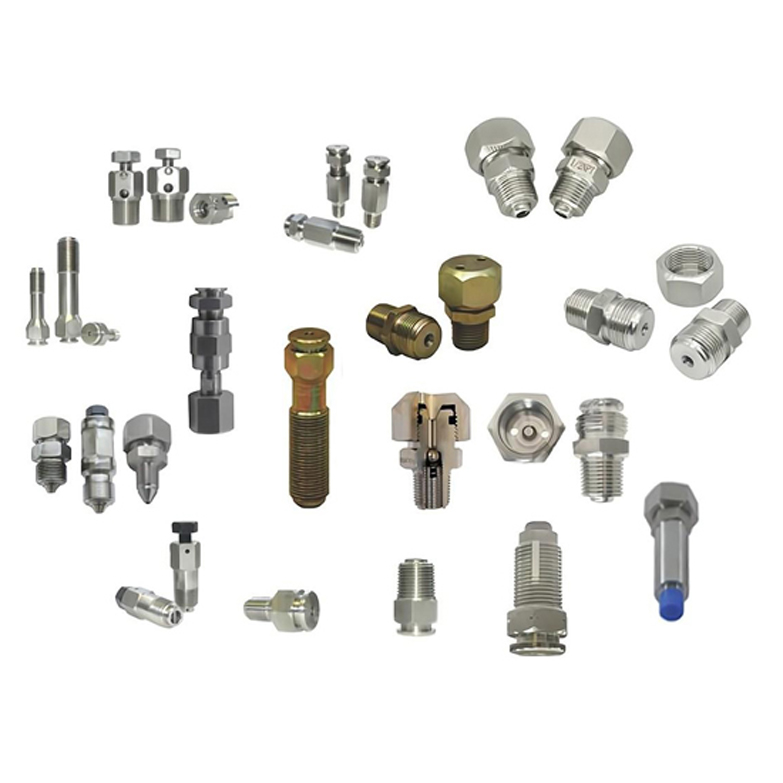

More options
