Description

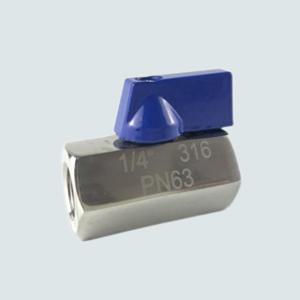

Stainless Steel Mini Ball Valve (or miniature ball valves)
Features:
1000 PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
Sanitary Design
Thread: ASME B1.20.1,BS21.0,DIN2999/259, ISO228-1,JIS B 0203,ISO7/1
Inspection Testing: API598,en12266
Stainless Steel Mini Ball Valve (or miniature ball valves)
With a pressure rating of 1,000 PSI (water, oil or gas) and made out of SS 316/304, this line of valves outshines the rest of the mini ball valves available on this site. The valves are available in Female, Male,Barb, Weld, Flange and otherconnection types, and in sizes from 1/8" to 1".
* StainlessSteel (CF8M/CF8) body and ball - for extra strength and corrosion resistance
* Working on pressure of 1,000 PSI(PN63)
* Double seal system allows for flow can go in either direction
* Aluminum Alloy handles (painted blue/Red/Black/Green/Yellow), and stainless steel handle are optional
* Various styles of handles are available to suit different working conditions
* Fast 1/4 turn open or closed operation
* Each valve individually tested for maximum safety
Material
|
Item |
Designation |
Material |
|
1 |
O-ring |
NBR |
|
2 |
Stem |
SUS 304 |
|
3 |
Bolt |
SUS 304 |
|
4 |
Lever |
Aluminum Alloy/CF8 |
|
5 |
Body |
CF8/CF8M |
|
6 |
Cap |
CF8/CF8M |
|
7 |
Ball Seat(a) |
RPTFE |
|
8 |
Ball |
CF8/CF8M |
|
9 |
Ball Seat(b) |
RPTFE |
Spec. Sheet
|
Order Number |
Size |
Connection end |
|
1/8in. |
Female to Female |
|
|
SS-2MN-2FF |
1/4in. |
Female to Female |
|
SS-2MN-3FF |
3/8in. |
Female to Female |
|
SS-2MN-4FF |
1/2in. |
Female to Female |
|
SS-2MN-6FF |
3/4in. |
Female to Female |
|
SS-2MN-8FF |
1in. |
Female to Female |
|
SS-2MN-1FM |
1/8in. |
Female to Male |
|
SS-2MN-2FM |
1/4in. |
Female to Male |
|
SS-2MN-3FM |
3/8in. |
Female to Male |
|
SS-2MN-4FM |
1/2in. |
Female to Male |
|
SS-2MN-6FM |
3/4in. |
Female to Male |
|
SS-2MN-8FM |
1in. |
Female to Male |
|
SS-2MN-1MM |
1/8in. |
Female to Male |
|
SS-2MN-2MM |
1/4in. |
Female to Male |
|
SS-2MN-3MM |
3/8in. |
Female to Male |
|
SS-2MN-4MM |
1/2in. |
Female to Male |
|
SS-2MN-6MM |
3/4in. |
Female to Male |
|
SS-2MN-8MM |
1in. |
Female to Male |
Other connection ends and sizes are optional.
