Stainless Steel Genaral Utility Service Needle Valve Stainless Steel Genaral Utility Service Needle Valve

Stainless Steel Genaral Utility Service Needle Valve

  • Product Item:JF
  • Material: Stainless Steel
  • Size: 1/8in. to 1in.
  • Connection: Compression Tube Fitting
  • Pressure: 6000 psi
  • Valve  , Needle Valve  , Compression Tube Fitting Thread Needle Valve  , Stainless Steel Needle Valve  , Stainless Steel Genaral Utility Service Needle Valve
    Inquiry Send Email

    Description

    Needle Valve Specification

    Materials

    CS, SS, Monel, Hastalloy, Duplex and High Nickel alloys

    Seat

    Metal or Soft

    Connections

    Thread, Weld or Tube End

    Design

    Forged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design

    Size

    1/8 to 1”, Custom Sizes available on request

    End Connection

    Male and Female NPT, BSPT,BSPP,SAE, Socket Weld (SW) or Dual Ferrule Tube Connections, Female to Male, Female to Female, Male to Male

    Working Pressure

    Up to 6000 PSIG
    Stainless Steel Needle Valves: up to 6000 psig (414 bar)
    Steel Needle Valves: up to 3000psig (207 bar)


    Needle Valves are also available that can handle higher pressure

    Temperature Rating

    PTFE 450F,(232C)/ Grafoil 700 F(371C)
    PTFE Packing: -65 °F to 450 °F ( -54 °C to 232 °C)
    PEEK Packing: -65 °F to 600 °F ( -54 °C to 315 °C)


    Needle Gauge Valve Application

    Petrochemicals

    Biofuels

    Textiles

    Sugar

    Wastewater treatment

    Food

    Chemicals

    Pharmaceutical

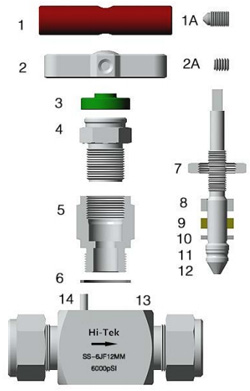

    Construction of Needle Valve

    Component

    Valve Body Materials

    316SS

    Alloy 400

    C-276

    1      Bar handle

    Anodized aluminum

    1A    Set screw

    High strength alloy steel (Grade 13.9)

    2      Square long handle

    Powder metallurgy 316SS

    2A    Set screw

    High strength alloy steel (Grade 13.9)

    3      Dust cap

    Plastic

    6      Packing Gland

    316SS

    Alloy 400

    C-276

    7      Gland lock nut

    316SS

    Alloy 400

    C-276

    8      Packing Gland

    316SS

    Alloy 400

    C-276

    9      Packing

    PTFE / graphite

    10    Shroud

    316SS

    Alloy 400

    C-276

    11    Stem

    316SS

    Alloy 400

    C-276

    12    Spool

    316SS

    Alloy 400

    C-276

    13    Body

    316SS

    Alloy 400

    C-276

    14    Locking pin

    316SS

    Alloy 400

    C-276


    Needle Valve Dimension standards

    End Connections

    Size

    (Inch)


    Orifice
    in. (mm)


    Dimensions, in. (mm)

    Inlet/Outlet

    A

    B

    C

    D

    H

    E

    E1

    E2

    J

    F

    Hi-Tek (Inch)

    tube fittings

    1/8 in

    2

    65.2

    32.6

    32.6

    30.6

    32.6

    25.4

    12.7

    25.47

    67

    44

    1/4 in

    4

    68.6

    34.3

    34.3

    32.3

    34.3

    25.4

    12.7

    25.47

    67

    44

    3/8 in

    6

    70.4

    35.2

    35.2

    33.2

    35.2

    25.4

    12.7

    25.47

    67

    44

    1/2 in

    6

    76.3

    38.2

    38.2

    38.2

    38.2

    25.4

    12.7

    25.47

    67

    44

    1/2 in

    8

    79.2

    39.6

    39.6

    35.6

    39.6

    33

    15

    33

    77

    70

    3/4 in

    13

    93.7

    46.9

    46.9

    42.9

    46.9

    28.6

    24

    28.6

    90

    94

    1 in

    13

    102.3

    51.2

    51.2

    47.2

    51.2

    32

    16

    32

    90

    94

    1 in

    17

    128.4

    64.2

    64.2

    58.2

    64.2

    64

    32

    64

    122

    125

    Hi-Tek (MM)

    tube fittings

    6

    4

    68.6

    34.3

    34.3

    32.3

    34.3

    25.4

    12.7

    25.4

    67

    44

    8

    6

    70.4

    35.2

    35.2

    33.2

    35.2

    25.4

    12.7

    25.4

    67

    44

    10

    6

    76.3

    38.2

    38.2

    38.2

    38.2

    25.4

    12.7

    25.4

    67

    44

    12

    6

    76.3

    38.2

    38.2

    38.2

    38.2

    25.4

    12.7

    25.4

    67

    44

    14

    6

    76.3

    38.2

    38.2

    38.2

    38.2

    25.4

    12.7

    25.4

    67

    44

    14

    8

    79.2

    39.6

    39.6

    35.6

    39.6

    33

    15

    33

    77

    70

    18

    8

    79.2

    39.6

    39.6

    35.6

    39.6

    33

    15

    33

    77

    70

    18

    13

    93.7

    46.9

    46.9

    42.9

    46.9

    28.6

    24

    28.6

    90

    94

    22

    13

    93.7

    46.9

    46.9

    42.9

    46.9

    28.6

    24

    28.6

    90

    94

    25

    17

    128.4

    64.2

    64.2

    58.2

    64.2

    64

    32

    64

    122

    125

    All dimensions are for reference only and may change at any time.


    Standards Of Needle Valve

    Test & Inspection according to : API 6D / API 598

    Design & Manufacture according to : BS 1868

    Pressure & Temperature according to : ASME B16.34

    Face to Face according to : ASME B16.10

    Visual Inspection according to : MSS SP-55

    Flange Dimensions according to : ASME B16.5

    Marking according to : MSS SP-25


    When to use needle valve?

    This Valves used with higher differential pressure, and our valve standard range covers a pressure range up to PN40, and on request up to PN100. It can be manually actuated or can be controlled by electrical, hydraulic or pneumatic actuation.


    Needle Valve Pressure Range

    Material Name

    316SS

    Alloy 400

    Alloy 20

    Alloy 600

    Alloy C-276

    Titanium

    Material Name

    316SS

    Temperature

    315°C(600 °F)

    Working pressure≤ ≥ 6000Psig(bar)

    ≥ 10000Psig(bar)

    –65 (–53) to 100 (37)

    6000(413)

    5000(344)

    5000(344)

    6000(413)

    6000(413)

    3570(245)

    –65 (–53) to 100 (37)

    10000(689)

    200(93)

    5160(355)

    4400(303)

    4640(319)

    5600(385)

    6000(413)

    3110(214)

    200(93)

    9290(640)

    250(121)

    4910(338)

    4260(293)

    4500(310)

    5460(376)

    6000(413)

    2840(195)

    250(121)

    8840(609)

    300(148)

    4660(321)

    4120(283)

    4360(300)

    5320(366)

    6000(413)

    2570(177)

    300(148)

    8390(578)

    350(176)

    4470(307)

    4050(279)

    4185(288)

    5220(359)

    5975(411)

    2385(164)

    350(176)

    8045(554)

    400(204)

    4280(294)

    3980(274)

    4010(276)

    5120(352)

    5880(405)

    2200(151)

    400(204)

    7705(530)

    450(232)

    4130(284)

    3970(273)

    3955(272)

    5030(346)

    5710(393)

    2055(141)

    450(232)

    7435(512)

    500(260)

    3980(274)

    3960(272)

    3900(268)

    4940(340)

    5540(381)

    1885(129)

    500(260)

    7165(493)

    600(315)

    3760(259)

    /

    3790(273)

    4780(329)

    5040(347)

    1625(111)

    600(315)

    6770(466)

    650(343)

    3700(254)

    /

    3750(258)

    4700(323)

    4905(337)

    /

    650(343)

    6660(458)

    700(371)

    3600(248)

    /

    3710(255)

    4640(319)

    4730(325)

    /

    700(371)

    6480(446)

    750(398)

    3520(242)

    /

    3665(252)

    4430(305)

    4430(305)

    /

    750(398)

    6335(436)

    800(426)

    3460(236)

    /

    3600(248)

    4230(291)

    4230(291)

    /

    800(426)

    6230(429)

    850(454)

    3380(232)

    /

    /

    4060(279)

    4060(279)

    /

    850(454)

    6085(419)

    900(482)

    3280(225)

    /

    /

    3745(258)

    3745(258)

    /

    900(482)

    5905(406)

    950(510)

    3220(221)

    /

    /

    2725(187)

    3220(221)

    /

    950(510)

    5795(399)


    Testing of Needle Valve

    Each set of HI-TEK threaded Needle Valve has been tested in the factory with nitrogen at 1000Psig (69bar), and the maximum allowable leakage rate of the valve is 0.1 standard cm³/m in. The shell test is based on the use of leak detection fluid, and there is no detectable leak.


    Note: Packing may need to be adjusted during the service life of the valve. Valves that have not been opened for a period of time will have a higher initial force torque.
